Analysis and Data Output

Results and graphs of data resulting.

Displacements, velocities and accelerations values at all the Control Points are stored and processed to be shown in tabular forms and graphics. Default Control Points ,predefined by Clockwork, are the geometric vertex of the foundation.

Vibration Levels Acceptance Criteria:

Reiher-Meister Chart, Richart, Hall and Woods 1970.

General machinery vibration severity chart Baxter and Bernhard 1967.

Blake 1964, as modified by Arya, O'Neill, and Pincus 1979.

Displacements are analyzed and displayed for these three recognized criteria.

Report

All the related information (model,forces and results) are summarized in a final report which can be exported to pdf, xls, doc or rtf.

Runtime graphics can be selected (screeshot) to incorporate them in the Report.

Runtime Results

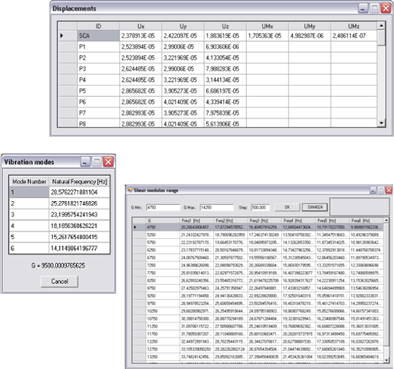

Runtime Default Tables indicating :Response parameters at Control Points, undamped natural frequencies and parametric results.

Vibration results are superimposed in Vibration Levels charts.

Resultant of applied forces at the center of gravity of SCA are displayed against time.

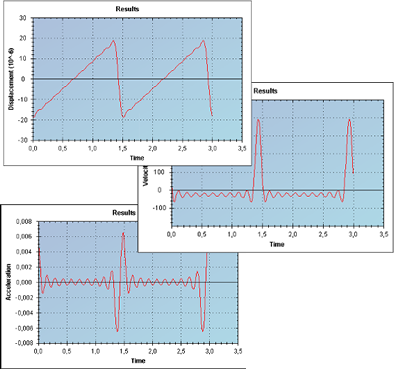

Response parameters at Control Points are displayed against time.
